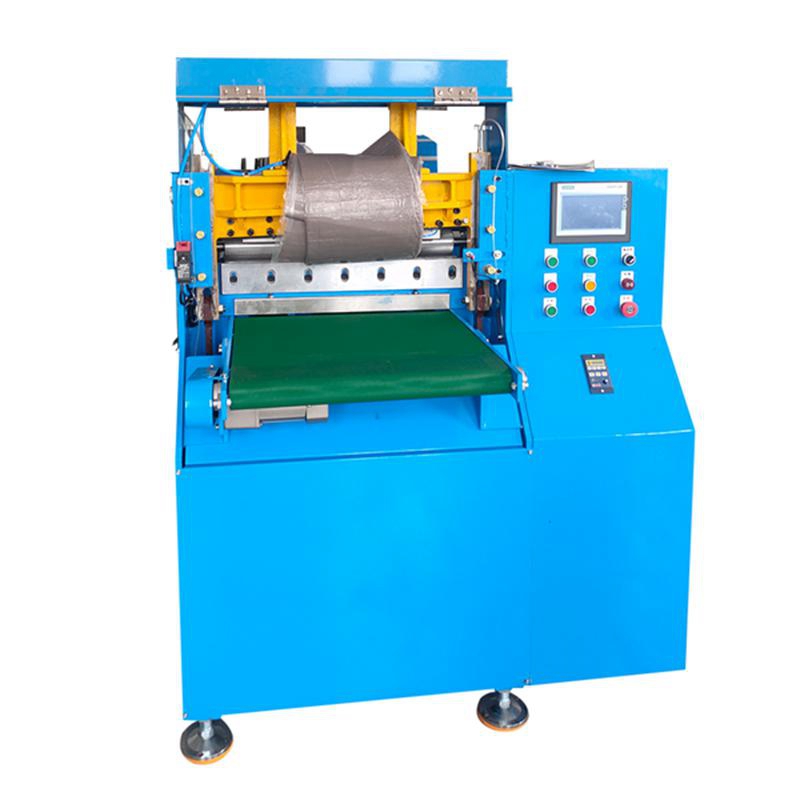

Rubber Strip Cutting Machine
Home |

Rubber Strip Cutting Machine

Rubber strip cutting machine is kind of quick and precision method to cut the rubber material in term of length or weight. High efficiency and high precision of PEGE rubber sheet cutting machine can help the manufacturer to save time and make perfact products.

Rubber strip cutter from Nanjing Pege can have a precison up to 0.1mm and 0.1g.

Grid List
  • rubber sheet cutter
    Advanced Rubber Sheet Cutting Machine PG-HA-600
    The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Rubber Strip Cutting Machine Advanced Type Model PG-HA-600 PG-HA-800 PG-HA-1000 Size 1350*1300*1490 1350*1500*1490 1350*1700*1490 Weight 600kg 680kg 760kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~25mm 0~25mm 0~25mm Max Precision 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. Blade Material Tungsten Steel W18 Tungsten Steel W18 Tungsten Steel W18 Feeding Mode Servo motor Servo motor Servo motor Cut Speed ≤80/min ≤80/min ≤80/min Power supply 4kw 3ph 380v 4kw 3ph 380v 5.5kw 3ph 380v Speed Control PLC& Inverter PLC& Inverter PLC& Inverter Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen

    Tags : Rubber Strip Cutter rubber strip cutting machine rubber cutting machine manufacutures rubber cutter rubber sheet cutting machine rubber sheet cutter

    Read More
  • Advanced Rubber Sheet Cutting Machine PG-HA-800
    The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Rubber Strip Cutting Machine Advanced Type Model PG-HA-600 PG-HA-800 PG-HA-1000 Size 1350*1300*1490 1350*1500*1490 1350*1700*1490 Weight 600kg 680kg 760kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~25mm 0~25mm 0~25mm Max Precision 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. Blade Material Tungsten Steel W18 Tungsten Steel W18 Tungsten Steel W18 Feeding Mode Servo motor Servo motor Servo motor Cut Speed ≤80/min ≤80/min ≤80/min Power supply 4kw 3ph 380v 4kw 3ph 380v 5.5kw 3ph 380v Speed Control PLC& Inverter PLC& Inverter PLC& Inverter Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen

    Tags : Rubber Strip Cutter rubber strip cutting machine rubber cutting machine manufacutures rubber cutter rubber sheet cutting machine rubber sheet cutter

    Read More
  • Advanced Rubber Strip Cutter PG-HA-1000
    The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Rubber Strip Cutting Machine Advanced Type Model PG-HA-600 PG-HA-800 PG-HA-1000 Size 1350*1300*1490 1350*1500*1490 1350*1700*1490 Weight 600kg 680kg 760kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~25mm 0~25mm 0~25mm Max Precision 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. 0.1mm or 0.1g* *Strip thickness should be consistent. Blade Material Tungsten Steel W18 Tungsten Steel W18 Tungsten Steel W18 Feeding Mode Servo motor Servo motor Servo motor Cut Speed ≤80/min ≤80/min ≤80/min Power supply 4kw 3ph 380v 4kw 3ph 380v 5.5kw 3ph 380v Speed Control PLC& Inverter PLC& Inverter PLC& Inverter Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen

    Tags : Rubber Strip Cutter rubber strip cutting machine rubber cutting machine manufacutures rubber cutter rubber sheet cutting machine rubber sheet cutter

    Read More
  • rubber strip cutter
    Standard Rubber Strip Cutting Machine PG-H-800
    The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Rubber Strip Cutting Machine Standard Type Model PG-H-600 PG-H-800 PG-H-1000 Size 1170*1300*1400 1170*1500*1400 1170*1700*1400 Weight 400kg 450kg 500kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~12mm 0~12mm  0~12mm  Precision 0.2mm or 0.3g 0.2mm or 0.3g 0.2mm or 0.3g Blade material CR12Mov CR12Mov CR12Mov Feeding mode Stepper motor Stepper motor Stepper motor Cut Speed ≤70/min ≤70/min ≤70/min Power supply 2kw 3ph 380v 3kw 3ph 380v 4kw 3ph 380v Speed Control Industrial Control Board Industrial Control Board Industrial Control Board Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen

    Tags : Rubber Strip Cutter strip cutter rubber cutter rubber cutting machine rubber strip cutting machine rubber sheet cutting machine

    Read More
  • rubber strip cutte
    Standard Rubber Strip Cutting Machine PG-H-600
    The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Rubber Strip Cutting Machine Standard Type Model PG-H-600 PG-H-800 PG-H-1000 Size 1170*1300*1400 1170*1500*1400 1170*1700*1400 Weight 400kg 450kg 500kg Cutting Direction Horizontal Horizontal Horizontal Cutting width ≤580mm ≤800mm ≤1000mm Cutting Length 0.1-1000mm 0.1-1000mm 0.1-1000mm Cutting Thickness 0~12mm 0~12mm  0~12mm  Precision 0.2mm or 0.3g 0.2mm or 0.3g 0.2mm or 0.3g Blade material CR12Mov CR12Mov CR12Mov Feeding mode Stepper motor Stepper motor Stepper motor Cut Speed ≤70/min ≤70/min ≤70/min Power supply 2kw 3ph 380v 3kw 3ph 380v 4kw 3ph 380v Speed Control Industrial Control Board Industrial Control Board Industrial Control Board Operation Mode 7-inch Touch Screen 7-inch Touch Screen 7-inch Touch Screen

    Tags : Rubber Strip Cutter strip cutter rubber cutter rubber cutting machine rubber strip cutting machine rubber sheet cutting machine

    Read More
  • Auto Pneumatic Weighing Rubber Cutting Machine PG-AW-600
    The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Pneumatic Auto Weighing Rubber Strip Cutter Model PG-AW-600 PG-AW-800 Type Pneumatic Drive Pneumatic Drive Power supply 2.2kw 1ph 220V 50/60Hz 2.2kw 1ph 220V 50/60Hz Size 1030*899*1580 1030*1100*1580 Weight 320kg 400kg Cutting Direction Horizontal Horizontal Cutting width ≤580mm ≤800mm Cutting Length 0.1-1000mm 0.1-1000mm Cutting Thickness 0~10mm 0~10mm Max Precision 0.1mm or 0.2g* *Strip thickness should be consistent. 0.1mm or 0.2g* *Strip thickness should be consistent. Blade Material Cr12 Mov Vacuum Heat Cr12 Mov Vacuum Heat Feeding Mode Stepper Motor Stepper Motor Cut Speed 0-12cuts/min 0-12cuts/min Speed Control PLC PLC Operation Mode 7-inch Touch Screen 7-inch Touch Screen

    Tags : auto rubber strip cutter by weight rubber cutter rubber cutting machine rubber strip cutting machine rubber sheet cutting

    Read More
  • automatic cutting machine
    Pneumatic Auto Weighing Rubber Cutting Machine PG-AW-800
    The Pege Rubber Strip Cutter is primarily used for cutting raw material into precision length or weight strips and then load into multi-cavity moulds and is commonly used to produce strips to make moulds for the production of various rubber components.   Pneumatic Auto Weighing Rubber Strip Cutter Model PG-AW-600 PG-AW-800 Type Pneumatic Drive Pneumatic Drive Power supply 2.2kw 1ph 220V 50/60Hz 2.2kw 1ph 220V 50/60Hz Size 1030*899*1580 1030*1100*1580 Weight 320kg 400kg Cutting Direction Horizontal Horizontal Cutting width ≤580mm ≤800mm Cutting Length 0.1-1000mm 0.1-1000mm Cutting Thickness 0~10mm 0~10mm Max Precision 0.1mm or 0.2g* *Strip thickness should be consistent. 0.1mm or 0.2g* *Strip thickness should be consistent. Blade Material Cr12 Mov Vacuum Heat Cr12 Mov Vacuum Heat Feeding Mode Stepper Motor Stepper Motor Cut Speed 0-12cuts/min 0-12cuts/min Speed Control PLC PLC Operation Mode 7-inch Touch Screen 7-inch Touch Screen

    Tags : auto rubber strip cutter by weight rubber cutter rubber cutting machine rubber strip cutting machine rubber sheet cutting

    Read More
  • Slicone Rubber Strip Cutting Machine PG-SC-600
    Silicone Rubber Strip Cutting Machine can cut the silicone compound in a precise and efficient way by length or weight control. Kiss-cutting is available especially for the specific request for silicone rubber sheet. Specification Model                     PG-SC-600 Size                         1040*680*1000mm Material Suitable    Silicone Sheet Power supply         0.93Kw 220V 50-60hz Cutting Length      0.1mm-1000mm, Cutting width        ≤ 550mm, Sheet thickness     ≤10mm Cutting weight      0.1g-1000g Cutting speed        ≤100cut/min Model                     By Weight or By Length Operation Mode     Touch Screen Control Mode         PLC Numerical Controlled

    Tags : silicone rubber cutter silicone rubber cutting machine silicone sheet cutter rubber sheet cutting machine rubber sheet cutter Rubber Strip Cutter for silicone rubber

    Read More
  • silicone strip cutting machine
    Silicone Strip Cutting Machine PG-SC-600
    Silicone Rubber Strip Cutting Machine can cut the silicone compound in a precise and efficient way by length or weight control. Kiss-cutting is available especially for the specific request for silicone rubber sheet. Specification Model                     PG-SC-600 Size                         1040*680*1000mm Material Suitable    Silicone Sheet Power supply         0.93Kw 220V 50-60hz Cutting Length      0.1mm-1000mm, Cutting width        ≤ 550mm, Sheet thickness     ≤10mm Cutting weight      0.1g-1000g Cutting speed        ≤100cut/min Model                     By Weight or By Length Operation Mode     Touch Screen Control Mode         PLC Numerical Controlled

    Tags : silicone rubber cutter Rubber Strip Cutter silicone rubber cutting machine silicone sheet cutter rubber sheet cutting machine rubber sheet cutter

    Read More
