An aluminum foil airline food container making machine is a specialized machine used for the production of aluminum foil food containers specifically designed for use in airlines and other similar food service industries. It is capable of producing a high volume of uniform and standardized food containers in a fast and efficient manner.

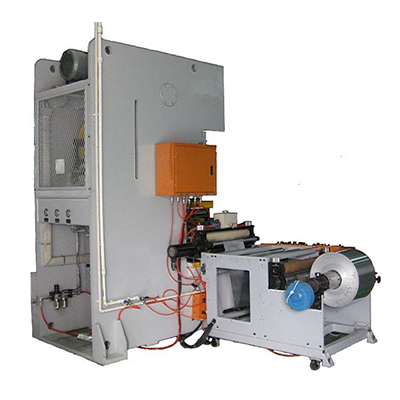

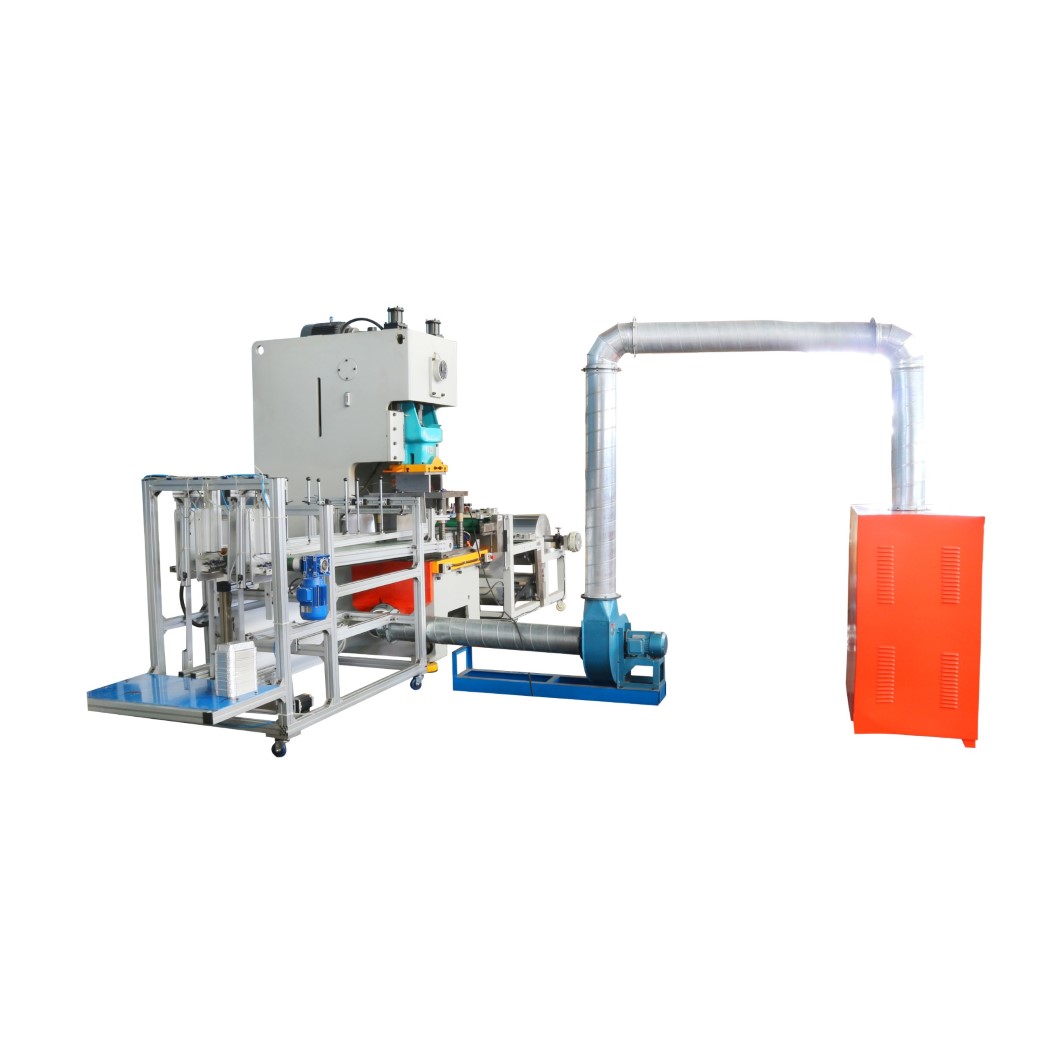

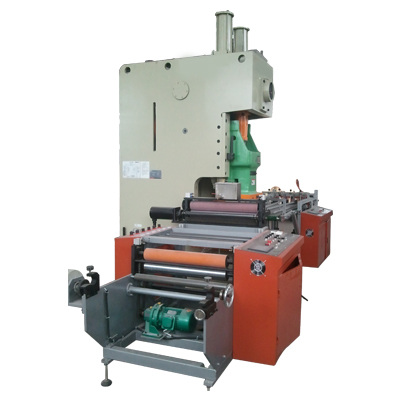

Aluminum foil airline food container making machine
The main components of an aluminum foil airline food container making machine typically include:
Feeding System: This system is responsible for feeding the aluminum foil material into the machine for further processing. It may consist of a roll of aluminum foil and a tension control system to ensure smooth and continuous feeding.
Material Cutting System: The machine is equipped with a cutting system to accurately cut the aluminum foil into the desired shape and size for the food containers. Various cutting mechanisms such as rotary cutting or stamping may be used depending on the specific design of the machine.
Molding System: This system shapes and molds the cut aluminum foil into the final form of the food container. It may utilize a combination of mechanical presses and molds to create the necessary folds and shapes required for the container.
Punching System: A punching system is employed to create perforations or ventilation holes in the formed aluminum foil containers, allowing steam and heat to circulate during the food heating process.
Stacking and Collection System: The machine typically includes a stacking and collection system to neatly stack and collect the finished aluminum foil containers, ready for packaging and transportation.
Control System: The machine is controlled by an automated control system that enables operators to set parameters such as container size, cutting length, perforation patterns, and production speed. It ensures proper synchronization and coordination of the various machine components for efficient operation.
The main features of an aluminum foil airline food container making machine:
high production efficiency
precise cutting and shaping capabilities
adjustable container sizes.
automatic operation with minimal manual intervention, and reliable performance.
These machines are designed to meet the specific requirements of the airline food service industry, producing containers that are lightweight, durable, and suitable for sealing and reheating food during flight operations
Several precautions when using an aluminum foil food container making machine:
1. Operator Safety: Ensure that the machine operator receives proper training on how to operate the machine safely. They should be aware of all safety procedures, including emergency stops, handling sharp edges, and wearing appropriate personal protective equipment.
2. Machine Maintenance: Regularly inspect and maintain the machine to ensure its proper function. Follow the manufacturer's guidelines for maintenance tasks such as lubrication, cleaning, and part replacement. This helps prevent accidents and extends the machine's lifespan.
3. Material Quality: Use high-quality aluminum foil material suitable for food packaging to ensure the safety of the final product. Inspect the incoming aluminum foil roll for any defects or abnormalities that may affect the container's integrity.
4. Machine Settings: Set the machine parameters correctly, including speed, temperature, and pressure, according to the specifications for the aluminum foil being used. Incorrect settings can lead to poor-quality containers or machine malfunctions.
5. Proper Loading: Load the aluminum foil rolls onto the machine's feeding system securely and correctly to prevent misalignment or jams. Follow the machine's instructions for precise loading methods.
6. Waste Management: Properly handle and dispose of any waste or scrap materials generated during the production process. Keep the work area clean and organized to prevent tripping hazards and ensure smooth operation.
7. Emergency Preparedness: Familiarize yourself with the machine's emergency stop button or switch, as well as other safety features. Ensure that fire extinguishers, first aid kits, and other safety equipment are readily available in the production area.
It's important to consult the specific documentation and guidelines provided by the manufacturer of the aluminum foil food container making machine for detailed instructions on its safe and proper usage.
Applications

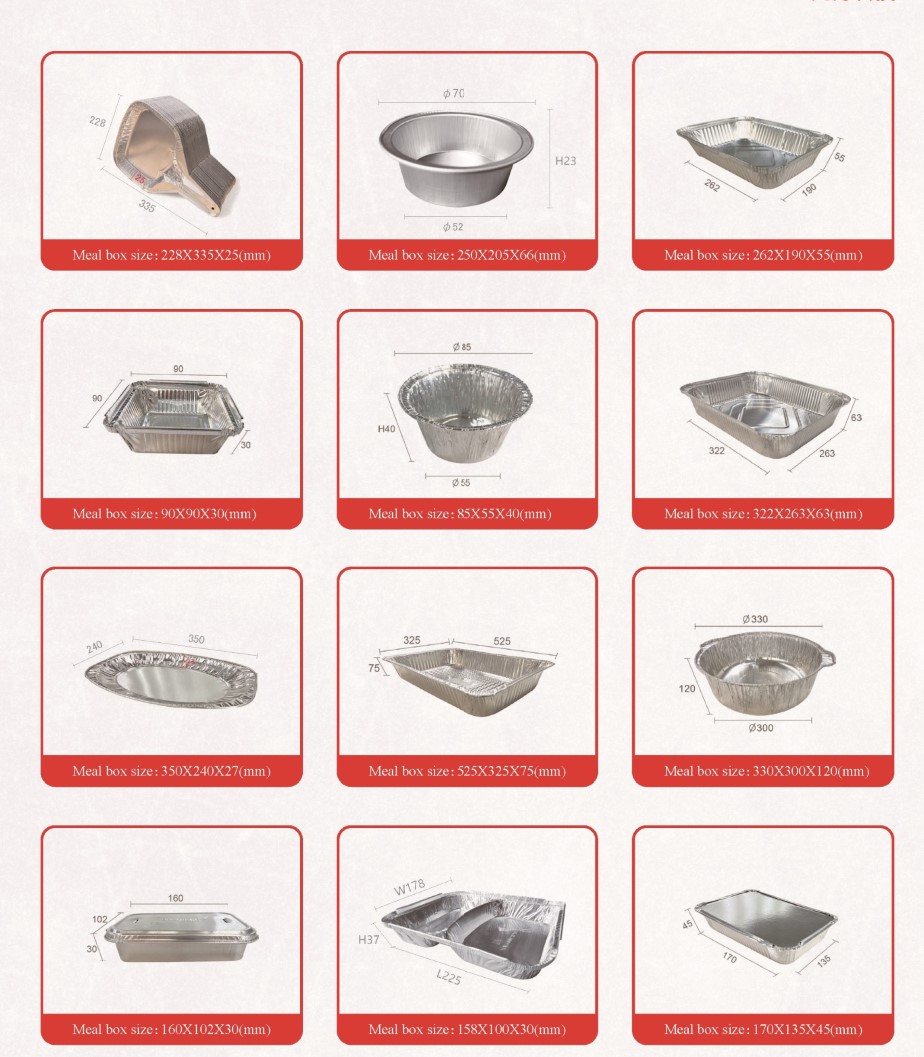

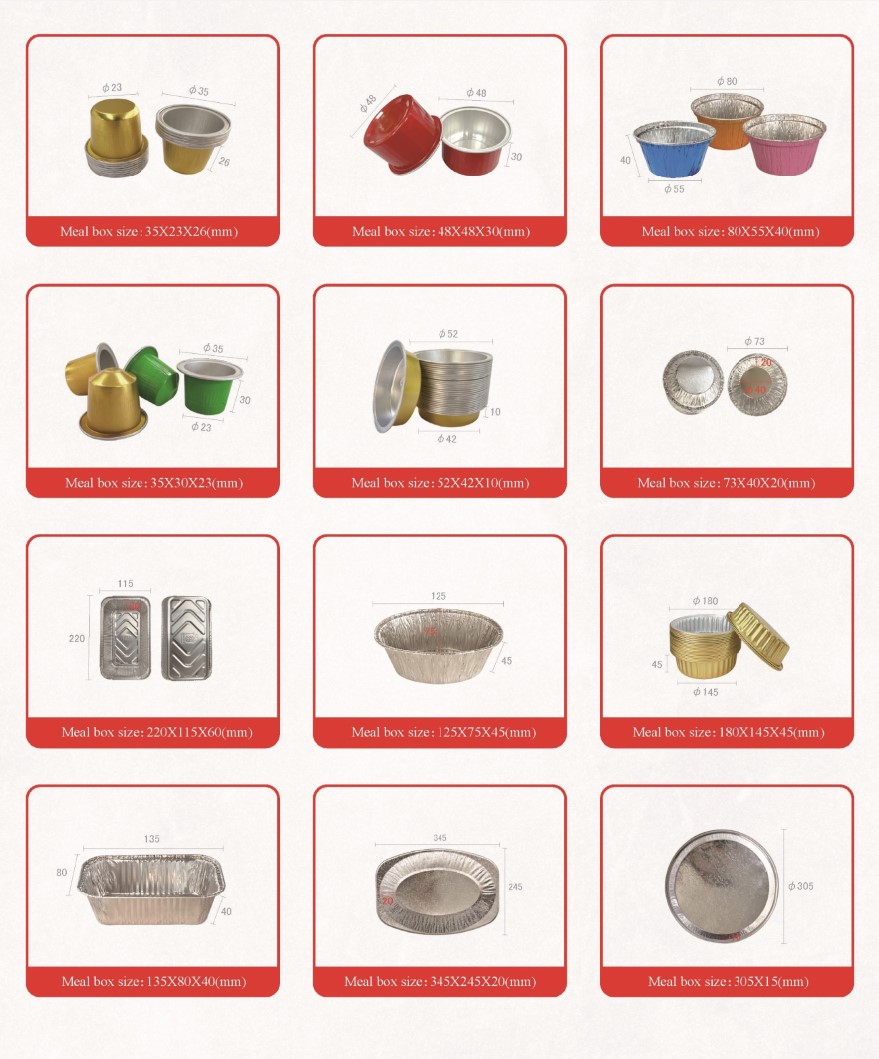

Successful Application for the Airline Luch Box or Meal Container
Alum Foil Airline Meal Box Auto Making Machine Lines for Lid and Casserole in Vietnam
An aluminum foil airline food container making machine is a specialized machine used for the production of aluminum foil food containers specifically designed for use in airlines and other similar food service industries. It is capable of producing a high volume of uniform and standardized food containers in a fast and efficient manner.
Aluminum Foil Food Container Auto Making Machine
Specifications-PG-45AT
Max Pressure
450KN
Air Pressure
0.7Mpa
Max Material Width
500mm (OEM)
Max Material Diameter
600mm
Production Speed
40-70PCS one cavity 80-140pcs two cavities
Slider Stroke
120-260mm
Mould Loading Height
270-480mm
Mould Adjustable Height
60mm
Punch Machine Motor Power
7.5kW 380V 50/60Hz
Weight of Punch Machine
5500KG
Punch Machine Size
1800mm*2300mm*1700mm
Feeding Machine Size
2200mm*1400mm*1500mm
Feeding Accuracy
0.1mm
Feeding Machine Power
1.5KW 380V 50/60Hz
Double Track Stacker Size
25mm*1300mm*1600mm
Double Track Stacker Power
3KW 380V 50/60Hz
Food Container Size
100*100mm-250*350mm
Scrap Collector Machine
3KW 380V 50/60Hz
