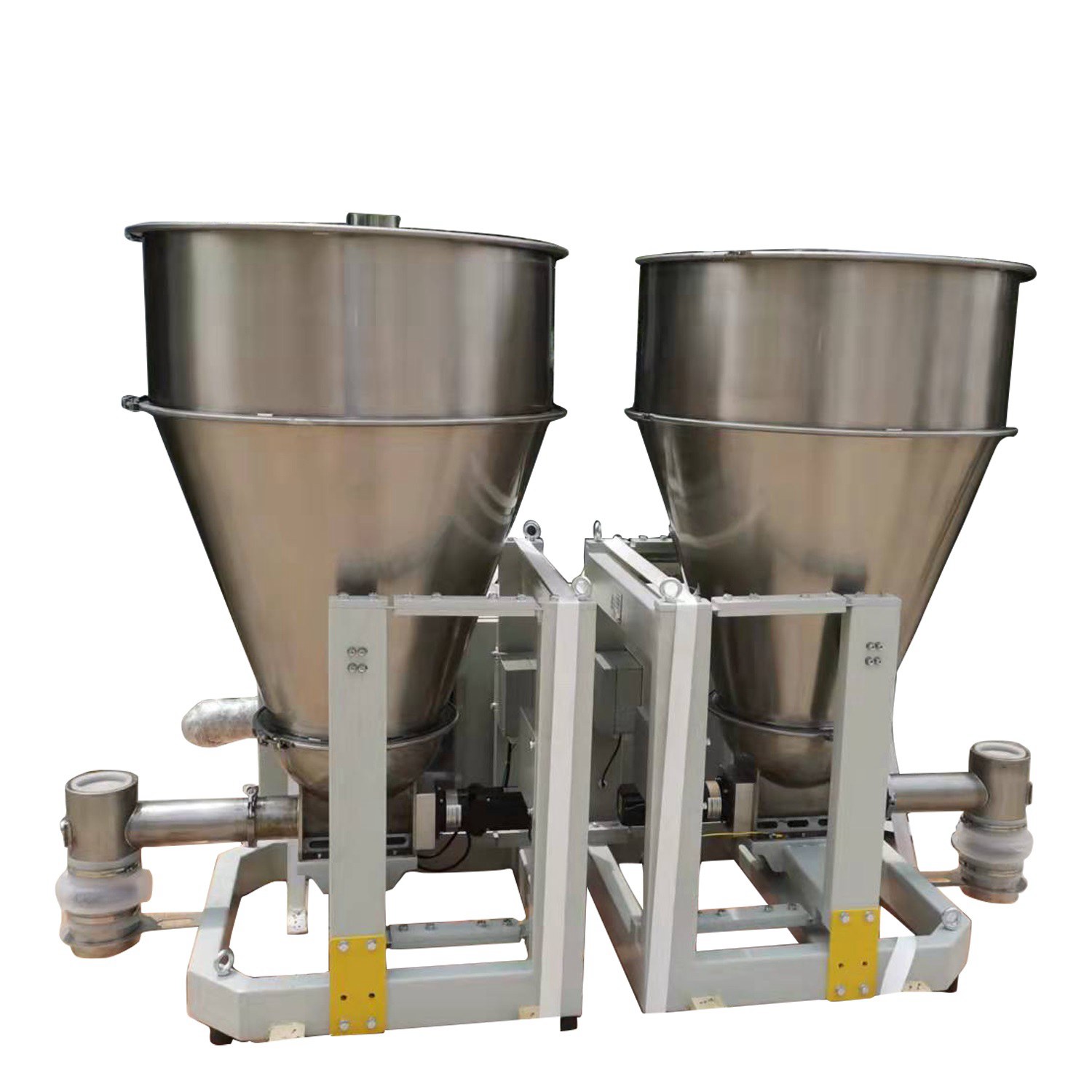

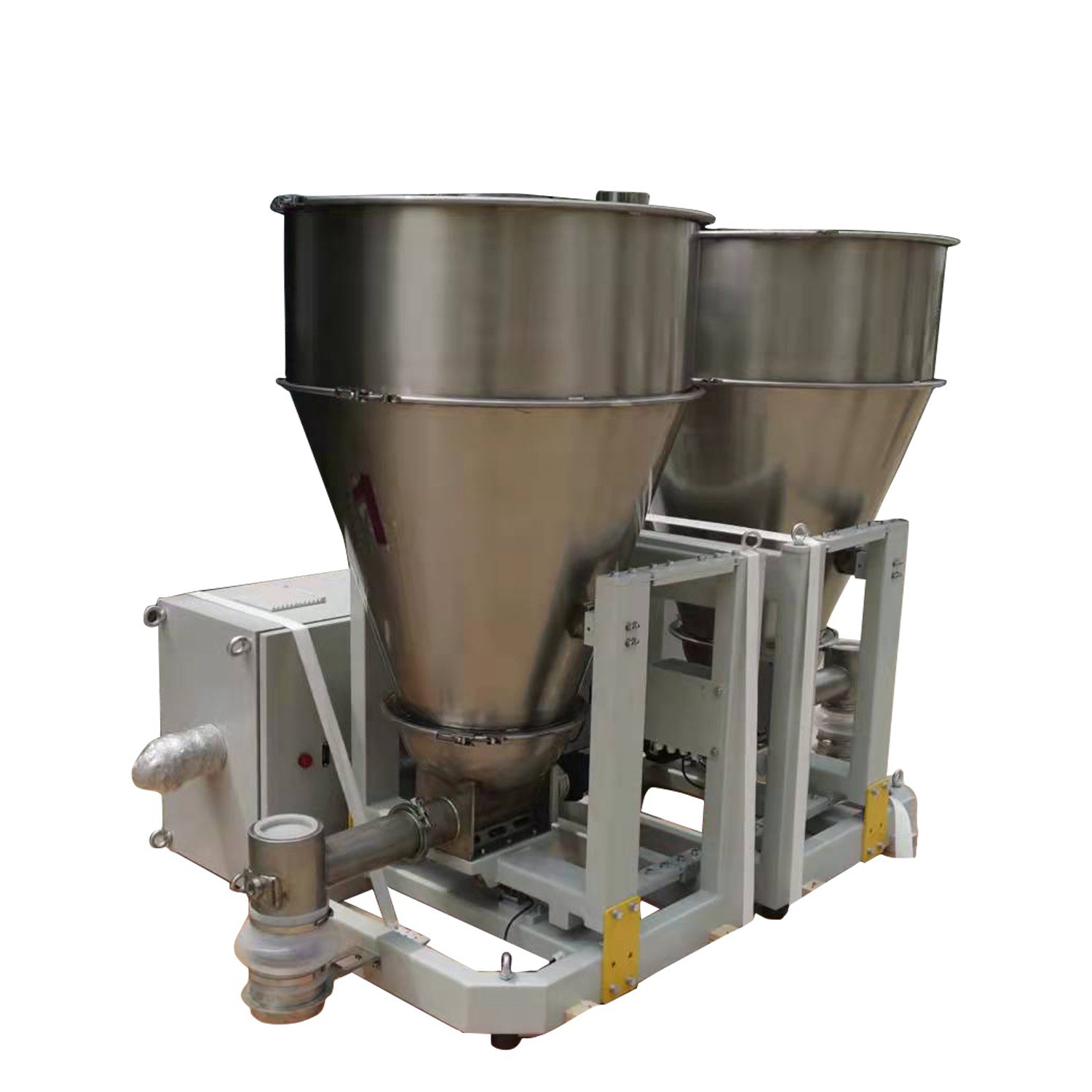

Single Screw Loss in Weight Feeder PG-FW-63

Gravimetric loss in weight feeder is an instrument that is important to control and measure the speed of a substance in an instrument system. This equipment can handle the bulk solids. It allows the solid to discharge at a constant weight per unit time. The unit of measurement is kg/min or Kg/hour. The signal about the weight is used as a system of feedback control. It controls and monitors the feed rate that enters a instrument. The weighing systems include several examples such as platform scales, load-cells, weigh hoppers, etc. Depending on the overall process, the gravimetric feeder may be a loss-in-weight system or a gain-in-weight system. Parameters Model PG-FT-30 PG-FT-39 PG-FT-46 PG-FT-56 Capacity range 15-150kg/h 50-300kg/h 100-800kg/h 200-1500kg/h Hopper Volume 50L 80L 150L 250L Sensor Range 80kg 200kg 250kg 300kg Net Weight 80kg 140kg 170kg 190kg Size 975x470x965 1065x540x1150 1135x610x1300 1160x650x1400 Power AC380V Feeding motor 0.37kw +stirring motor 0.2kw AC380V 3ph Feeding 0.55kw +Stirring 0.4kw AC380V 3ph Feeding 0.75kw +stirring 0.4kw AC380V 3ph Feeding 1.1 kw +Stirring 0.4kw Servo Motor Optional 220V 1 Ph 0.4KW*2 220V 1 Ph 0.75KW*2 220V 1 Ph 1KW*2 220V 1 Ph 2KW*2 Screw Solid Twin Screw Solid Twin Screw Solid Twin Screw Solid Twin Screw Dynamic accuracy ±0.5% ±0.5% ±0.5% ±0.5% Resolution 1/100000 1/100000 1/100000 1/100000 Discharge tube Φ45x3x2 Φ57x3x2 Φ65x3x2 Φ89x3x2

Gravimetric loss in weight feeder is an instrument that is important to control and measure the speed of a substance in an instrument system. This equipment can handle the bulk solids. It allows the solid to discharge at a constant weight per unit time. The unit of measurement is kg/min or Kg/hour. The signal about the weight is used as a system of feedback control. It controls and monitors the feed rate that enters a instrument. The gravimetric weighing systems include several examples such as platform scales, load-cells, weigh hoppers, etc. Depending on the overall process, the gravimetric feeder will be a loss-in-weight system.   Parameters/Model PG-FP-48 PG-FP-57 PG-FP-89 Capacity range 10-150kg/h 30-450kg/h 100-1500kg/h Hopper Volume 40L 80L 200L Load Cell Range 50kg 75kg 200kg Net Weight 86kg 140kg 200kg Dimension 700x550x900 770x595x1000 1100x710x1040 Power AC380V 3ph Feeding Motor 0.25kw Stirring Motor 0.15kw AC380V 3ph Feeding Motor 0.37kw Stirring Motor 0.2kw AC380V 3ph Feeding Motor 0.55kw Stirring Motor 0.4kw Output method Spring Screw or Solid Single Screw Spring Screw or Solid Single Screw Spring Screw or Solid Single Screw Dynamic accuracy ±0.5% ±0.5% ±0.5% Resolution 1/100000 1/100000 1/100000 Discharge tube Φ48x3 Φ63x3 Φ89x3

Gravimetric loss in weight feeder is an instrument that is important to control and measure the speed of a substance in an instrument system. This equipment can handle the bulk solids. It allows the solid to discharge at a constant weight per unit time. The unit of measurement is kg/min or Kg/hour. The signal about the weight is used as a system of feedback control. It controls and monitors the feed rate that enters a instrument. The weighing systems include several examples such as platform scales, load-cells, weigh hoppers, etc. Depending on the overall process, the gravimetric feeder may be a loss-in-weight system or a gain-in-weight system.   Parameters/Model PG-FW-48 PG-FW-63 PG-FW-89 PG-FW-114 Capacity range 10-100kg/h 50-500kg/h 100-1000kg/h 200-2000kg/h Hopper Volume 40L 80L 150L 350L Load Cell Range 50kg 120kg 300kg 500kg Net Weight 86kg 140kg 170kg 190kg Size 765x490x770 850x575x915 1055x750x1480 1100x800x1500 Power Servo Motor Drive AC380V 3ph Feeding Motor 0.4kw AC380V 3ph Feeding Motor 0.55kw AC380V 3ph Feeding Motor 0.75kw AC380V 3ph Feeding Motor 1.1kw Screw Type spiral screw or solid single screw spiral screw or solid single screw spiral screw or solid single screw spiral screw or solid single screw Dynamic accuracy ±0.5% ±0.5% ±0.5% ±0.5% Min. Weight sensitivity 1g 1g 2g 2g Discharge tube Φ48x3 Φ63x3 Φ89x3 Φ114x3

Gravimetric loss in weight feeder is an instrument that is important to control and measure the speed of a substance in an instrument system. This equipment can handle the bulk solids. It allows the solid to discharge at a constant weight per unit time. The unit of measurement is kg/min or Kg/hour. The signal about the weight is used as a system of feedback control. It controls and monitors the feed rate that enters a instrument. The gravimetric weighing systems include several examples such as platform scales, load-cells, weigh hoppers, etc. Depending on the overall process, the gravimetric feeder will be a loss-in-weight system.   Parameters/Model PG-FP-48 PG-FP-57 PG-FP-89 Capacity range 10-150kg/h 30-450kg/h 100-1500kg/h Hopper Volume 40L 80L 200L Load Cell Range 50kg 75kg 200kg Net Weight 86kg 140kg 200kg Dimension 700x550x900 770x595x1000 1100x710x1040 Power AC380V 3ph Feeding Motor 0.25kw Stirring Motor 0.15kw AC380V 3ph Feeding Motor 0.37kw Stirring Motor 0.2kw AC380V 3ph Feeding Motor 0.55kw Stirring Motor 0.4kw Output method Spring Screw or Solid Single Screw Spring Screw or Solid Single Screw Spring Screw or Solid Single Screw Dynamic accuracy ±0.5% ±0.5% ±0.5% Resolution 1/100000 1/100000 1/100000 Discharge tube Φ48x3 Φ63x3 Φ89x3

Gravimetric loss in weight feeder is an instrument that is important to control and measure the speed of a substance in an instrument system. This equipment can handle the bulk solids. It allows the solid to discharge at a constant weight per unit time. The unit of measurement is kg/min or Kg/hour. The signal about the weight is used as a system of feedback control. It controls and monitors the feed rate that enters a instrument. The weighing systems include several examples such as platform scales, load-cells, weigh hoppers, etc. Depending on the overall process, the gravimetric feeder may be a loss-in-weight system or a gain-in-weight system.   Parameters/Model PG-FW-48 PG-FW-63 PG-FW-89 PG-FW-114 Capacity range 10-100kg/h 50-500kg/h 100-1000kg/h 200-2000kg/h Hopper Volume 40L 80L 150L 350L Load Cell Range 50kg 120kg 300kg 500kg Net Weight 86kg 140kg 170kg 190kg Size 765x490x770 850x575x915 1055x750x1480 1100x800x1500 Power Servo Motor Drive AC380V 3ph Feeding Motor 0.4kw AC380V 3ph Feeding Motor 0.55kw AC380V 3ph Feeding Motor 0.75kw AC380V 3ph Feeding Motor 1.1kw Screw Type spiral screw or solid single screw spiral screw or solid single screw spiral screw or solid single screw spiral screw or solid single screw Dynamic accuracy ±0.5% ±0.5% ±0.5% ±0.5% Min. Weight sensitivity 1g 1g 2g 2g Discharge tube Φ48x3 Φ63x3 Φ89x3 Φ114x3

Gravimetric loss in weight feeder is an instrument that is important to control and measure the speed of a substance in an instrument system. This equipment can handle the bulk solids. It allows the solid to discharge at a constant weight per unit time. The unit of measurement is kg/min or Kg/hour. The signal about the weight is used as a system of feedback control. It controls and monitors the feed rate that enters a instrument. The gravimetric weighing systems include several examples such as platform scales, load-cells, weigh hoppers, etc. Depending on the overall process, the gravimetric feeder will be a loss-in-weight system. Parameters/Model PG-FL-05（H) PG-FL-20（H) PG-FL-40（H) PG-FL-80（H) Capacity range 1-5kg/h 4-20kg/h 15-80kg/h 24-120kg/h Hopper Volume 5L 10L 20L 40L Sensor Range 5kg 10kg 20kg 50kg Net Weight 150kg 180kg 200kg 220kg Size (L*W*H) 1125x650x1370 1125x700x1470 1125x750x1570 1125x800x1670 Power AC380V 3ph 0.25kw AC380V 3ph 0.37kw AC380V 3ph 0.55kw AC380V 3ph 0.75kw Dynamic accuracy ±0.5% ±0.5% ±0.5% ±0.5% Min. Weight Sensitivity 0.1g 0.1g 0.5g 0.5g   (H) here means Heating function, it is optional.

Gravimetric loss in weight feeder is an instrument that is important to control and measure the speed of a substance in an instrument system. This equipment can handle the bulk solids. It allows the solid to discharge at a constant weight per unit time. The unit of measurement is kg/min or Kg/hour. The signal about the weight is used as a system of feedback control. It controls and monitors the feed rate that enters a instrument. The gravimetric weighing systems include several examples such as platform scales, load-cells, weigh hoppers, etc. Depending on the overall process, the gravimetric feeder will be a loss-in-weight system. Parameters/Model PG-FL-05（H) PG-FL-20（H) PG-FL-40（H) PG-FL-80（H) Capacity range 1-5kg/h 4-20kg/h 15-80kg/h 24-120kg/h Hopper Volume 5L 10L 20L 40L Sensor Range 5kg 10kg 20kg 50kg Net Weight 150kg 180kg 200kg 220kg Size (L*W*H) 1125x650x1370 1125x700x1470 1125x750x1570 1125x800x1670 Power AC380V 3ph 0.25kw AC380V 3ph 0.37kw AC380V 3ph 0.55kw AC380V 3ph 0.75kw Dynamic accuracy ±0.5% ±0.5% ±0.5% ±0.5% Min. Weight Sensitivity 0.1g 0.1g 0.5g 0.5g   (H) here means Heating function, it is optional.

Gravimetric loss in weight feeder is an instrument that is important to control and measure the speed of a substance in an instrument system. This equipment can handle the bulk solids. It allows the solid to discharge at a constant weight per unit time. The unit of measurement is kg/min or Kg/hour. The signal about the weight is used as a system of feedback control. It controls and monitors the feed rate that enters a instrument. The gravimetric weighing systems include several examples such as platform scales, load-cells, weigh hoppers, etc. Depending on the overall process, the gravimetric feeder will be a loss-in-weight system. Parameters/Model PG-FL-05（H) PG-FL-20（H) PG-FL-40（H) PG-FL-80（H) Capacity range 1-5kg/h 4-20kg/h 15-80kg/h 24-120kg/h Hopper Volume 5L 10L 20L 40L Sensor Range 5kg 10kg 20kg 50kg Net Weight 150kg 180kg 200kg 220kg Size (L*W*H) 1125x650x1370 1125x700x1470 1125x750x1570 1125x800x1670 Power AC380V 3ph 0.25kw AC380V 3ph 0.37kw AC380V 3ph 0.55kw AC380V 3ph 0.75kw Dynamic accuracy ±0.5% ±0.5% ±0.5% ±0.5% Min. Weight Sensitivity 0.1g 0.1g 0.5g 0.5g   (H) here means Heating function, it is optional.
