Vacuum Mandrel Gasket Cutting Machine PG-YAQ-2S
Home | Mandrel Washer Cutting Machine |

Vacuum Mandrel Gasket Cutting Machine PG-YAQ-2S

gasket cutter
mandrel gasket cutting
washer cutter
mandrel cutting machine

Vacuum Mandrel Gasket Cutting Machine PG-YAQ-2S

Vacuum Mandrel Cutting can eliminate the burrs problem and highly improve the production capacity.This is the reason we designed our mandrel cutting machines, a kind of precision machines for cutting gaskets and washers from molded or extruded tubes/pipes/hoses made of rubber/plastic/silicone/polyurethane/foam or similar hard and half-hard materials.





Model

PG-YAQ-1S

PG-YAQ-2S

PG-YAQ-4S

Shaft Qty

One Shaft

Two Shafts

4 Shafts

Drive Mode

Servo Motor

Servo Motor

Servo Motor

Cutting Efficiency

Max 60 cut/min

Max 120cut/min

Max 240cut/min

Speed

0～3000r/min

0～3000r/min

0～3000r/min

Precision

≤±0.05mm

≤±0.05mm

≤±0.05mm

Cut Diameter Range

Φ10mm～Φ150mm

Φ10mm～Φ120mm

Φ10mm～Φ110mm

Cutting Length

≤200mm

≤200mm

≤150mm

Wall Thickness

≤20mm

≤20mm

≤20mm

Blade Spec

(1)Round Blade：Φ60×Φ25.4×Φ0.35mm

(1)Round Blade：Φ60×Φ25.4×Φ0.35mm

(1)Round Blade：Φ60×Φ25.4×Φ0.35mm

Consumption of Air

50L/min

50L/min

50L/min

Pressure

0.5MPa～0.8MPa

0.5MPa～0.8MPa

0.5MPa～0.8MPa

Vacuum Level

≤-0.035MPa

≤-0.035MPa

≤-0.035MPa

Power Supply

AC220V±5% 50/60Hz

AC220V±5% 50/60Hz

AC220V±5% 50/60Hz

Gross Power

1KW

2KW

3KW

Weight

≈400Kg

≈580Kg

≈800Kg

Dimension(L*W*H)

1350mm×980mm×1400mm

1550mm×980mm×1650mm

1650mm×980mm×17650mm



Inquire Now

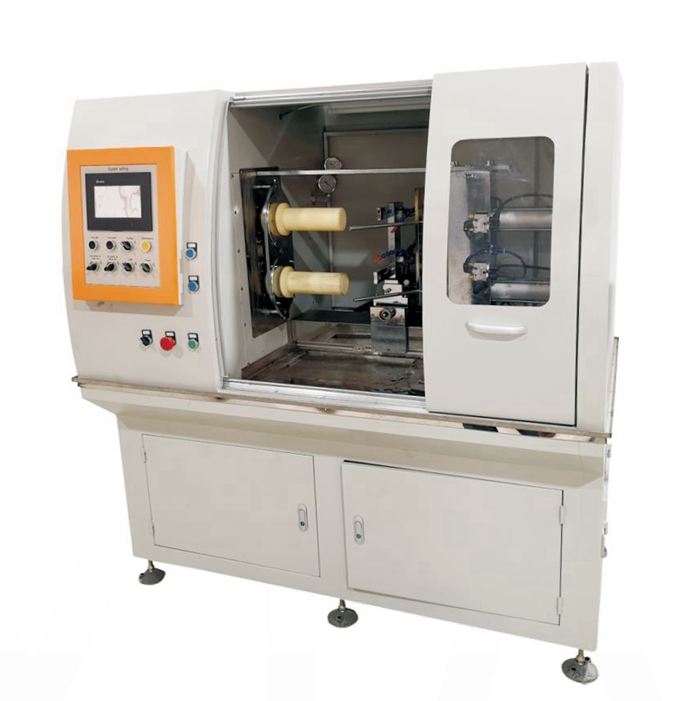

Vacuum Washer& Gasket Cutting Machine Two Shafts-PG-YAQ-2S

Vacuum Mandrel Gasket Cutting Machine

INTRODUCTION OF MANDREL GASKET CUTTING MACHINE:

Gaskets and seals are widely used in modern industry and life.

The traditional method to produce gaskets is mainly with molding machines or press, but more and more flashes appear due to the difference of multi-cavity and aging of mold, this will cause high raw material waste and labor consumption.

Using Auto Vacuum Mandrel Cutting can eliminate the burrs problem and highly improve the production capacity.

This is the reason we designed our mandrel cutting machines, a kind of precision machines for cutting gaskets and O-rings from molded or extruded tubes/pipes/hoses made of rubber/plastic/silicone/polyurethane/foam or similar hard and half-hard materials.

The distinguishing features are the unique cutting method brings high output and the highest cut quality together.

Making use of our cutting machines can greatly improve efficiency and precision. The precision of cutting running accuracy is 0.03mm, and maximum cutting efficiency with 4 shafts machine can reach to be 240 pcs in one minute.



APPLICATION OF WASHER CUTTING MACHINE:
The machine is used for rapid cutting of various rubber, silicone rubber, plastic, PTFE gasket and washer and sleeves. Very efficient for tubular type components cutting.


FEATURES OF GASKET CUTTER:

1. Good quality machine with high efficiency can replace the traditional molding method, reduce the labor pressure and cost.
2. Save the raw material and reduce the waste.
3. High precision can reach to 0.03mm.
4. Smooth, clean, shinning feature retains after cutting.

5. Brand components from Taiwan or Japan ensure machine reliable and stable performance.
6. Servo Motor drive can ensure higher and more stable cutting speed and efficiency.

7. Low requirement on the compressed air pressure.

8. HMI touch screen control panel allow easy and convenient parameter setting and adjustment.

9. Various choice on shafts quantity according to the washer outer diameter, one shaft, two shaft and four shaft available to meet different demands.

WORKSHOP AND MACHINES
